Titan - 1

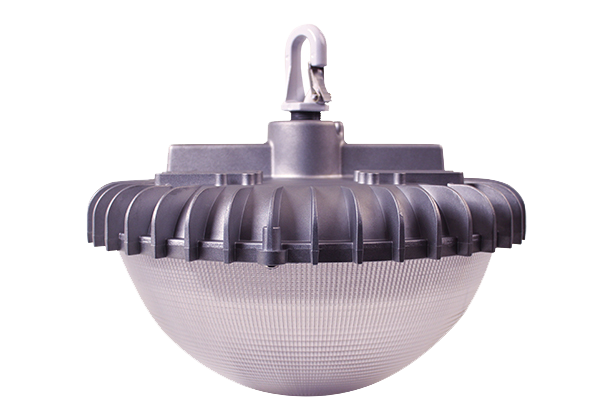

Titan
/0350
/014”
LUMINAIRE SPECIFICATIONS
Luminaire Type - Low bay
Adjustability - Fixed
Housing material - Die cast aluminium
Trim/Bezel (Finish) - RAL 9010 White (Specify RAL colour for other finish)
Heat Sink material - Die cast aluminium
Reflector Finish - Acrylic, PMMA
Ingress Protection (*IP Rating) - IP 66
Beam Angle* - Wide
Power Factor - > 0.9
Luminaire Life Time - >_50,000 hrs
Life Time Basis - L70/B10 @ Ta o25c
Accessories - Diffuse Lens, honey comb Louver (Luminaire suitable to accommodate louver along with lens) & over size cutout hole adapter)
Warranty - 5 Years
Product Applications Areas - Industrial
LIGHT SOURCE SPECIFICATIONS
Light Source - LED
LED Color Variation - <_2SDCM and <_3SDCM options available
Colour Temperature (CCT) - 4000k (other options available)
Colour Rendering Index (CRI) - CRI 80, CRI 90 and CRI 95 options available
Luminous Flux** - 4000 lm (up to 12,000)
FOR MORE INFORMATION CLICK HERE
Titan
/0350
/014”
LUMINAIRE SPECIFICATIONS
Luminaire Type - Low bay
Adjustability - Fixed
Housing material - Die cast aluminium
Trim/Bezel (Finish) - RAL 9010 White (Specify RAL colour for other finish)
Heat Sink material - Die cast aluminium
Reflector Finish - Acrylic, PMMA
Ingress Protection (*IP Rating) - IP 66
Beam Angle* - Wide
Power Factor - > 0.9
Luminaire Life Time - >_50,000 hrs
Life Time Basis - L70/B10 @ Ta o25c
Accessories - Diffuse Lens, honey comb Louver (Luminaire suitable to accommodate louver along with lens) & over size cutout hole adapter)
Warranty - 5 Years
Product Applications Areas - Industrial
LIGHT SOURCE SPECIFICATIONS
Light Source - LED
LED Color Variation - <_2SDCM and <_3SDCM options available
Colour Temperature (CCT) - 4000k (other options available)
Colour Rendering Index (CRI) - CRI 80, CRI 90 and CRI 95 options available
Luminous Flux** - 4000 lm (up to 12,000)
FOR MORE INFORMATION CLICK HERE
Titan
/0350
/014”
LUMINAIRE SPECIFICATIONS
Luminaire Type - Low bay
Adjustability - Fixed
Housing material - Die cast aluminium
Trim/Bezel (Finish) - RAL 9010 White (Specify RAL colour for other finish)
Heat Sink material - Die cast aluminium
Reflector Finish - Acrylic, PMMA
Ingress Protection (*IP Rating) - IP 66
Beam Angle* - Wide
Power Factor - > 0.9
Luminaire Life Time - >_50,000 hrs
Life Time Basis - L70/B10 @ Ta o25c
Accessories - Diffuse Lens, honey comb Louver (Luminaire suitable to accommodate louver along with lens) & over size cutout hole adapter)
Warranty - 5 Years
Product Applications Areas - Industrial
LIGHT SOURCE SPECIFICATIONS
Light Source - LED
LED Color Variation - <_2SDCM and <_3SDCM options available
Colour Temperature (CCT) - 4000k (other options available)
Colour Rendering Index (CRI) - CRI 80, CRI 90 and CRI 95 options available
Luminous Flux** - 4000 lm (up to 12,000)
